Exhaust seals?

Post by rawheels »

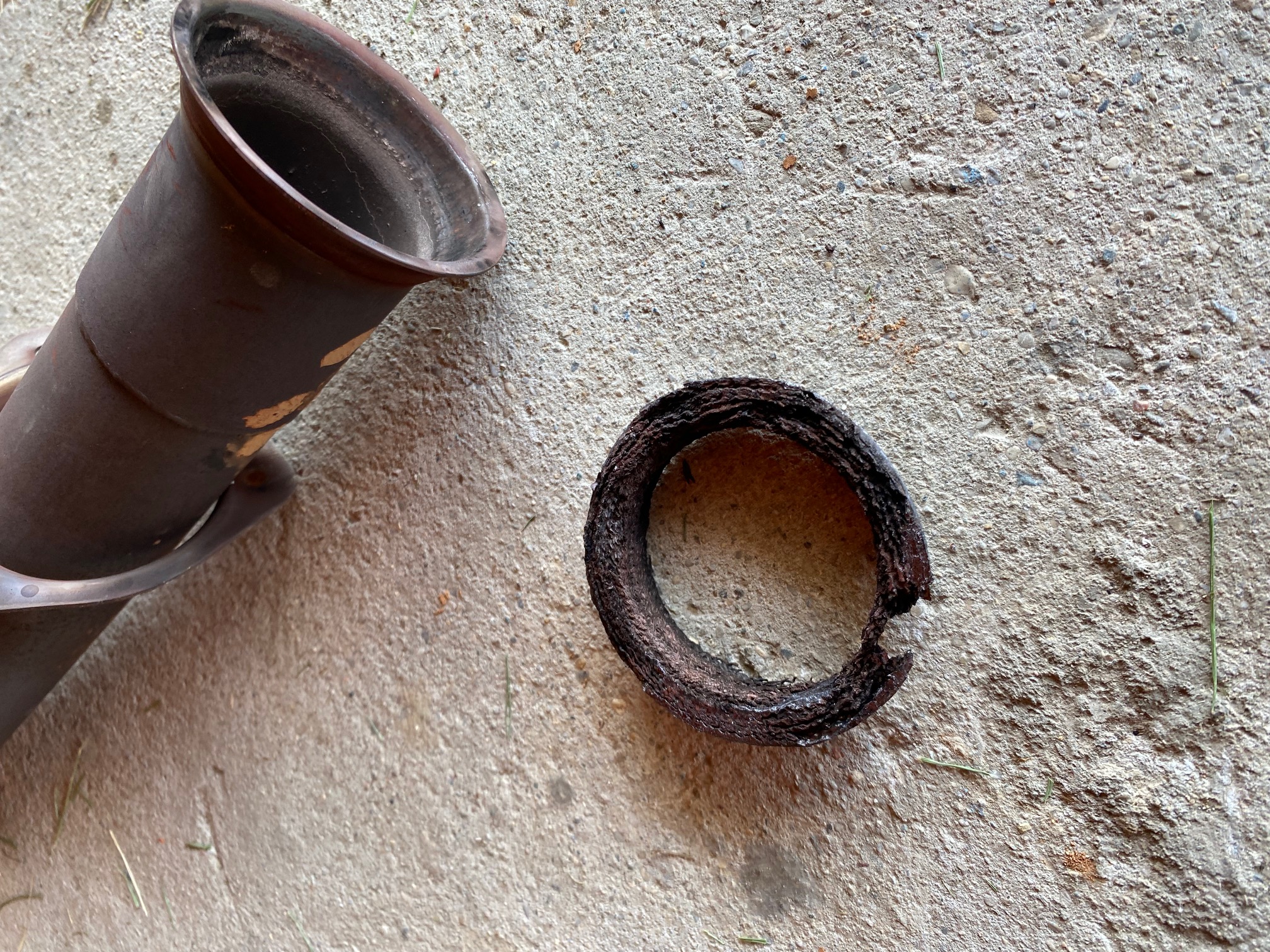

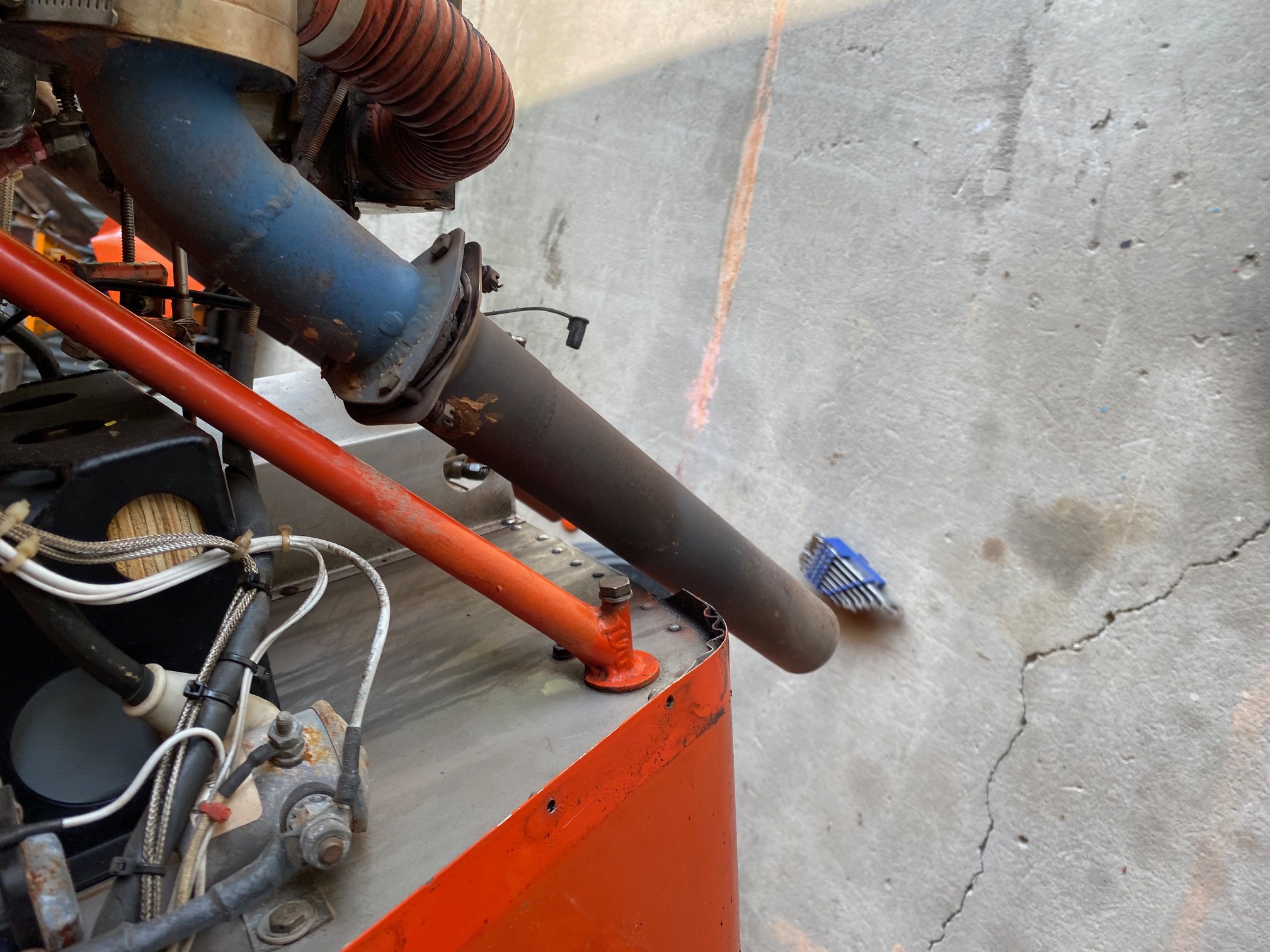

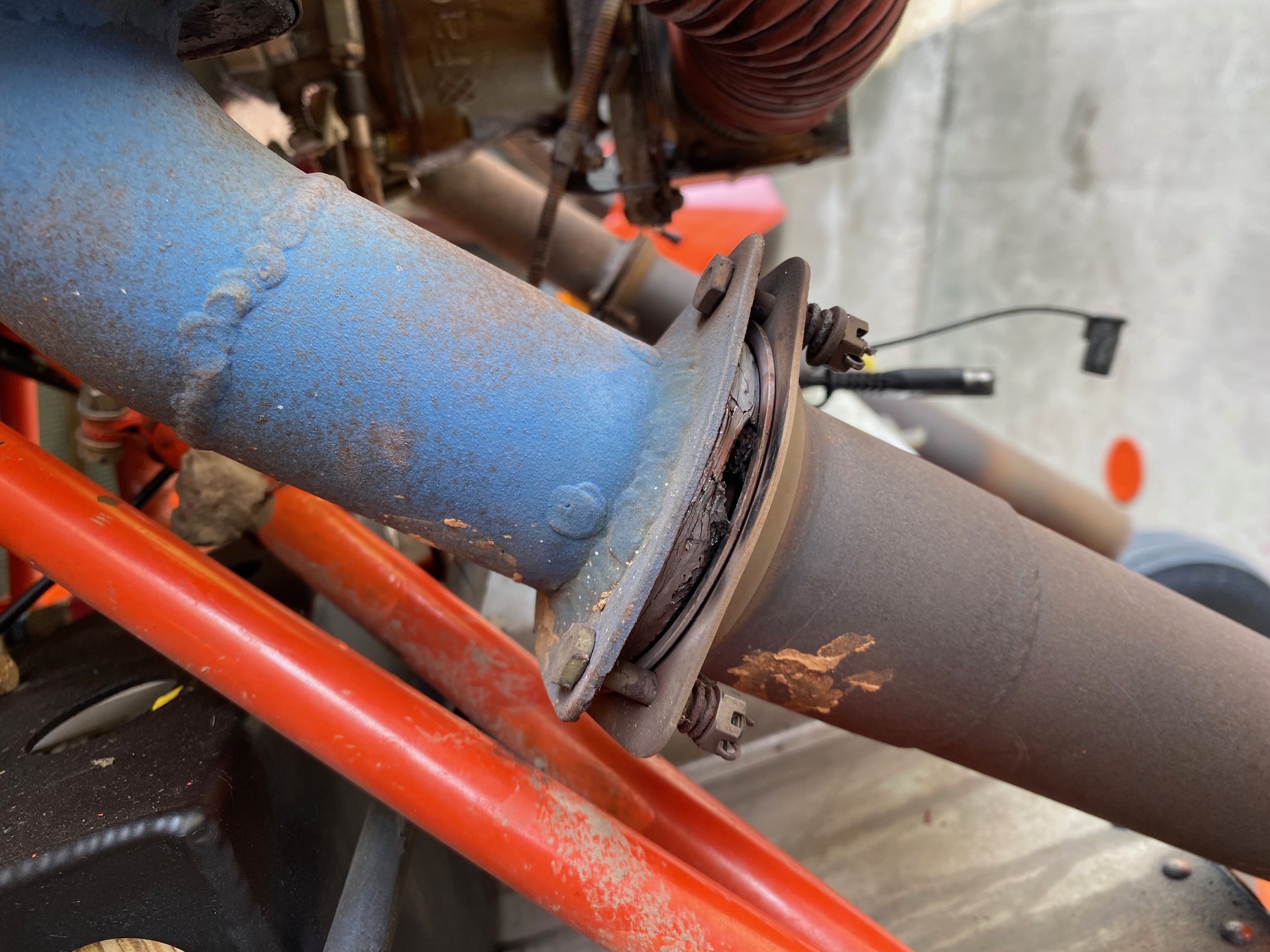

My plane was built using a IO-320 from a 1974 Decathlon. During my conditional inspection yesterday, I found that the seal between the exhaust and the tailpipe extension has burned through. Does anyone else have a similar set-up and know the name of the part I am looking for? I'm trying to find where I can purchase the part, but not sure what to even google at this point.
You do not have the required permissions to view the files attached to this post.
User avatar
Dana
Posts: 83
Joined: Mon Aug 06, 2018 6:51 pm

Re: Exhaust seals?

Post by Dana »

Looks like a standard automotive exhaust donut.

https://www.summitracing.com/search/par ... ut-gaskets
User avatar
rawheels
Posts: 76
Joined: Thu Aug 12, 2010 1:40 pm
Location: Westfield, IN
Contact:

Re: Exhaust seals?

Post by rawheels »

Thanks for the help. Think I found a usable option at the local auto (& aviation) store.
